Independently verified
Tested at an accredited fall protection laboratory
Gravitec Systems evaluated the Epic ERA Shield using test methods derived from the ANSI/ASSP Z359 fall protection standards. Under controlled drop conditions, the Shield detected the fall.
Result
Fall detection
This testing is described as third-party validation. It is not presented as regulatory certification, approval, endorsement, or a guarantee by Gravitec Systems.
- Laboratory
- Gravitec Systems Inc.
- Accreditation
- ISO 17025 accredited test facility
- Test method
- Derived from ANSI/ASSP Z359
- Conditions
- Controlled drop, ambient dry
- Location
- Poulsbo, Washington
Test results
Ambient dry, Gravitec Systems Inc.
| Measurement | Acceptance criteria | Result | Pass / fail | Exp. uncertainty |
|---|---|---|---|---|
| Fall detection | Fall detected | Verified | PASS | – |
| Maximum arrest force | Information only | 1,194.2 lbf | – | ±6.2 |
| Average arrest force | Information only | 860.8 lbf | – | ±6.1 |
| Deployment distance | Information only | 36.4 in | – | ±0.2 |
Scroll sideways to see all columns
Arrest force and deployment distance describe the fall-arrest equipment used in the drop. They are recorded for information and are not measures of the Shield itself.
Gravitec Systems Inc. is an independent fall protection testing laboratory in Poulsbo, Washington, operating an ISO 17025 accredited test facility.
Evaluation in a professional fall-protection environment
Testing was conducted in a professional fall-protection environment using controlled test conditions and specialized equipment.
This important milestone supports EGI’s commitment to independently evaluated performance, responsible product development, and advancing technology designed to strengthen worker safety and emergency response.
September 18, 2026 — Gravitec Systems validation testing
Milestone 1: Controlled testing conducted

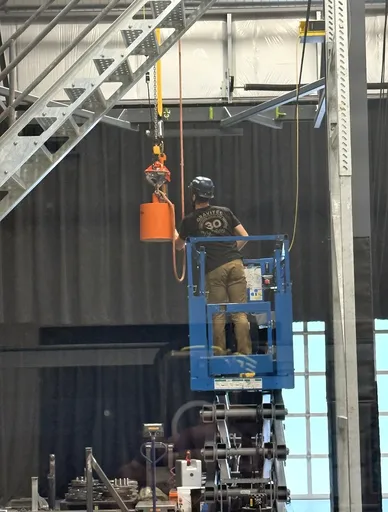

The Epic ERA Shield was evaluated under controlled test conditions in a professional fall-protection environment.
Milestone 2: Specialized equipment used
Testing activity was conducted at the Gravitec Systems fall-protection training and testing facility using specialized equipment.
Milestone 3: Validation milestone completed
Third-party validation testing was completed as part of the continued development and evaluation of the Epic ERA Shield.
